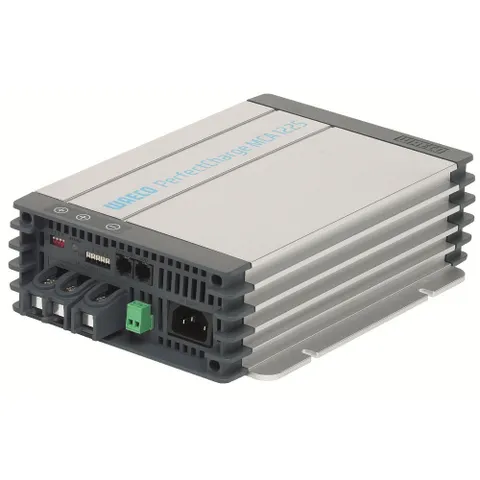

Dometic Waeco PerfectPower Battery Charger - 25A

SKU:MCA1225   PLU:136102
$249.00
RRP $359.00
SAVE $110.00 (31%)
Leaves in 1 business day
Check In Store for Local Pickup.


FREE Shipping for Orders over $69 for most Australians.
Banner - Nov Catalogue Sale Small

The Waeco PerfectPower Battery Charger - 25A is a 6-stage charging characteristic for fast, gentle battery charging - great for all gel, AGM and wet batteries!

Description

Starter batteries and supply batteries are designed for different tasks. To start the engine, starter batteries must initially supply a high current level and will then serve as an energy buffer with smaller partial cycles. Supply or onboard batteries, in contrast, are discharged at lower current levels over longer periods of time and then charged again. This means they are subjected to considerably higher loads. These special features must be factored into the charging technology to protect the batteries from damage and ensure they have a long service life. The battery chargers from Waeco PerfectPower function using a unique six-stage charging cycle.

PerfectPower chargers from Waeco offer a complete line-up of compelling features. They’re suitable for all lead-acid batteries and deliver especially gentle and – thanks to a 6-stage charging characteristic – especially fast charging times. A standard Bus interface also turns the chargers into genuine “networkers” that can be integrated perfectly into existing Bus systems as needed.

The Waeco PerfectPower Battery Charger - 25A has a small, compact size for easy transport and storage anywhere that you need to take it, and is perfect for charging lead starter batteries, lead gel batteries or absorbed glass mat (AGM) batteries.

Please Note: Do NOT use the device to charge other battery types (such as NiCd or NiMH).


Features

  • 6-stage charging characteristic for fast, gentle battery charging
  • Two or three charging ports for simultaneously charging multiple batteries
  • Available in performance variants

Specifications

Download the Dometic Waeco PerfectPower Battery Charger - 25A PDF Manual

Model: MCA1225
UPC/ISBN: 9331391007790

Dimensions: 17.9cm W x 23.8cm D x 6.3cm H

Weight: Approx. 1.7kg

System: 6-stage charging characteristics, overload/short-circuit protection, sleep mode using the remote control (not included) or dip switch on the device, type of protection equivalent to IP 21

Max. Charging Current: 25A

Operating Temperature: -20 °C to +50 °C

Charge Outputs: 2 + 1 (2 Battery Banks + 1 Starter Battery)

Input Voltage Range: 90 - 260 volts AC / 50 - 60Hz

End-of-Charging Voltage: 14.4 - 14.7 volts DC

Foat Charging Voltage: 13.8 volts DC

Recommended Battery Capacity: 75 - 300Ah

U0 Phase Limited At: 8h or 16h

Test Marks: CE, e-certified (Automotive EMC Directive)
