KT 300W Portable Folding Solar Blanket
- Delivery
- In-Store
- Click & Collect
- description. press to scroll to the description section.
- videos. press to scroll to the videos section.
- features. press to scroll to the features section.
- specifications. press to scroll to the specifications section.
- warranty. press to scroll to the warranty section.
- reviews. press to scroll to the reviews section.
description

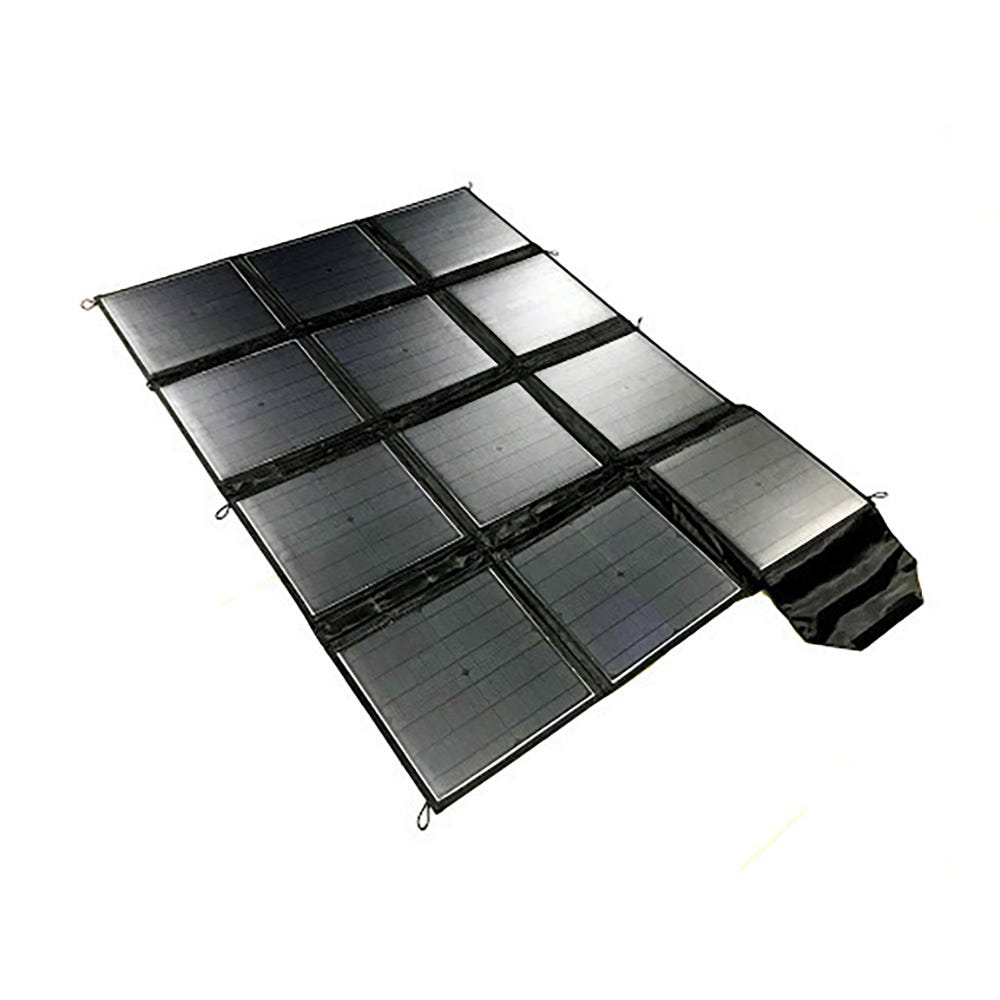

Finding a portable power solution can be tough for the avid 4X4 enthusiast or retired tourer! Thankfully, KT Solar has engineered some remarkably versatile, high-powered solar panels on the market. The KT 300W Portable Folding Solar Blanket unfolds to under 2.0m in length! The blanket itself is completely weatherproof, and packs down into a small included carry bag. The monocrystalline solar panels are mostly silicone in nature, making them incredibly robust. The top of each panel is finished with a matte coating for durability, but more importantly, scratch resistance. With plenty of added features included in the package, the KT 300W Portable Folding Solar Blanket is certain to meet your needs!
videos
features

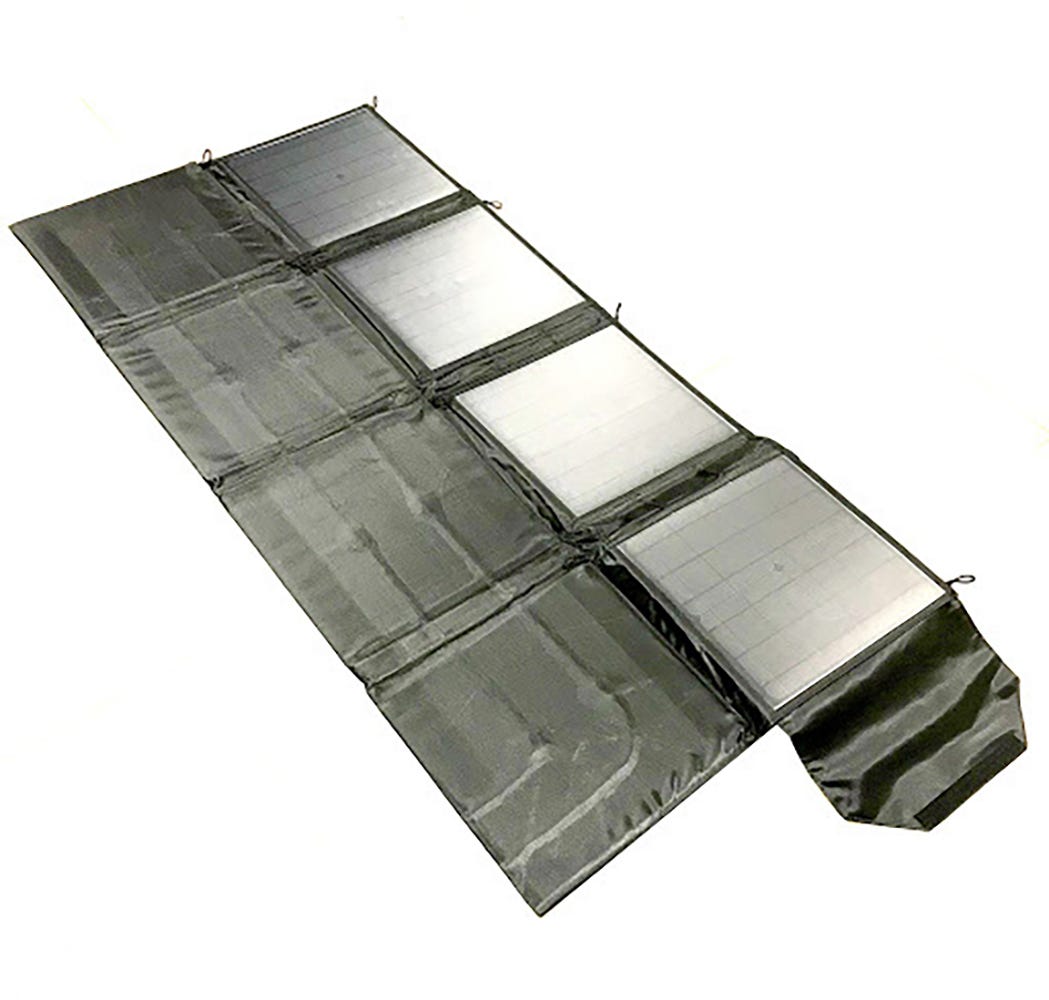

- One-Piece, Easy-Fold Blanket
- Heavy-Duty, Weather-Proof Blanket
- Compact Design

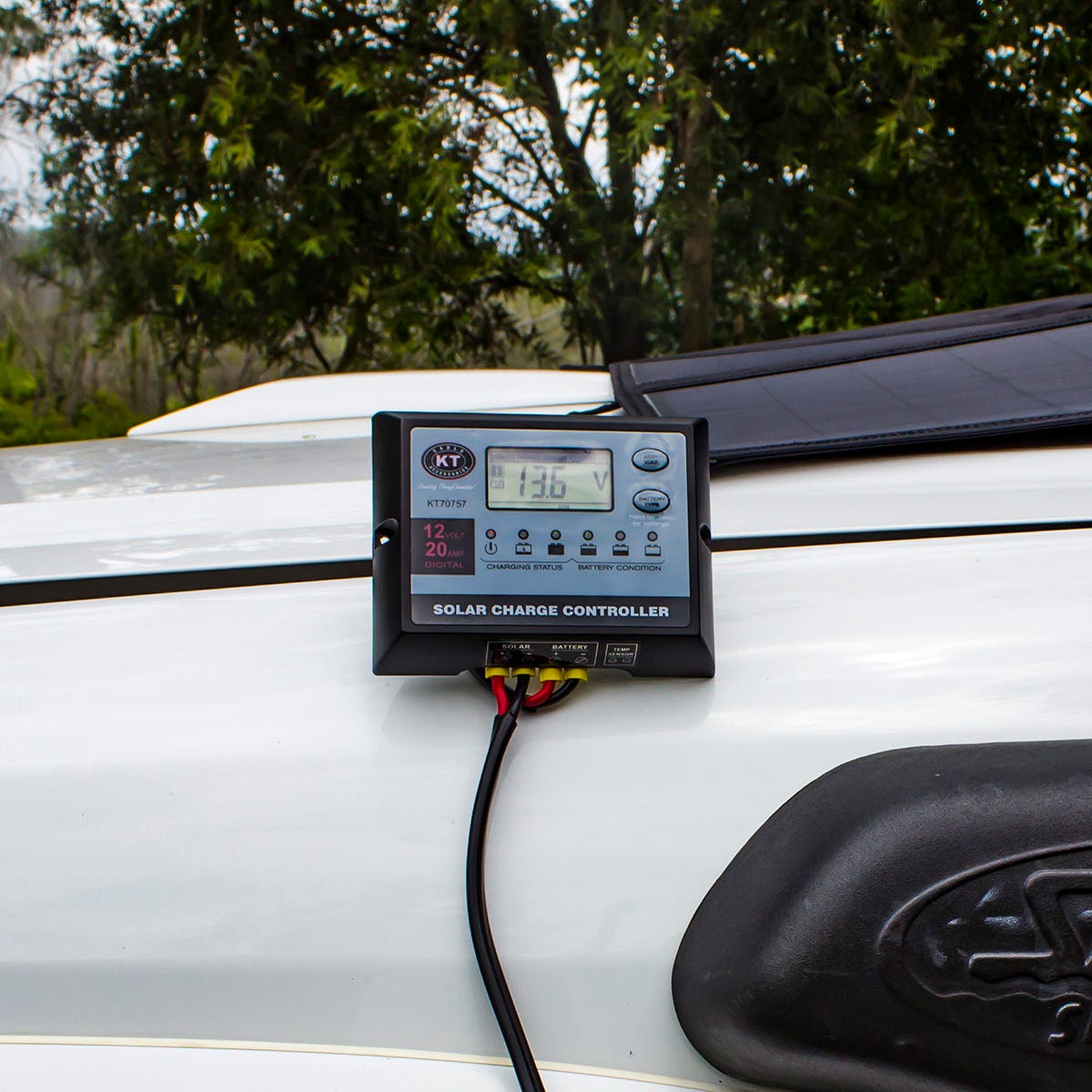

- Coloured Digital LCD Display
- Fully Regulated Charging
- Peg Loops for Secure Use
- 5m Lead and Battery Clips Included

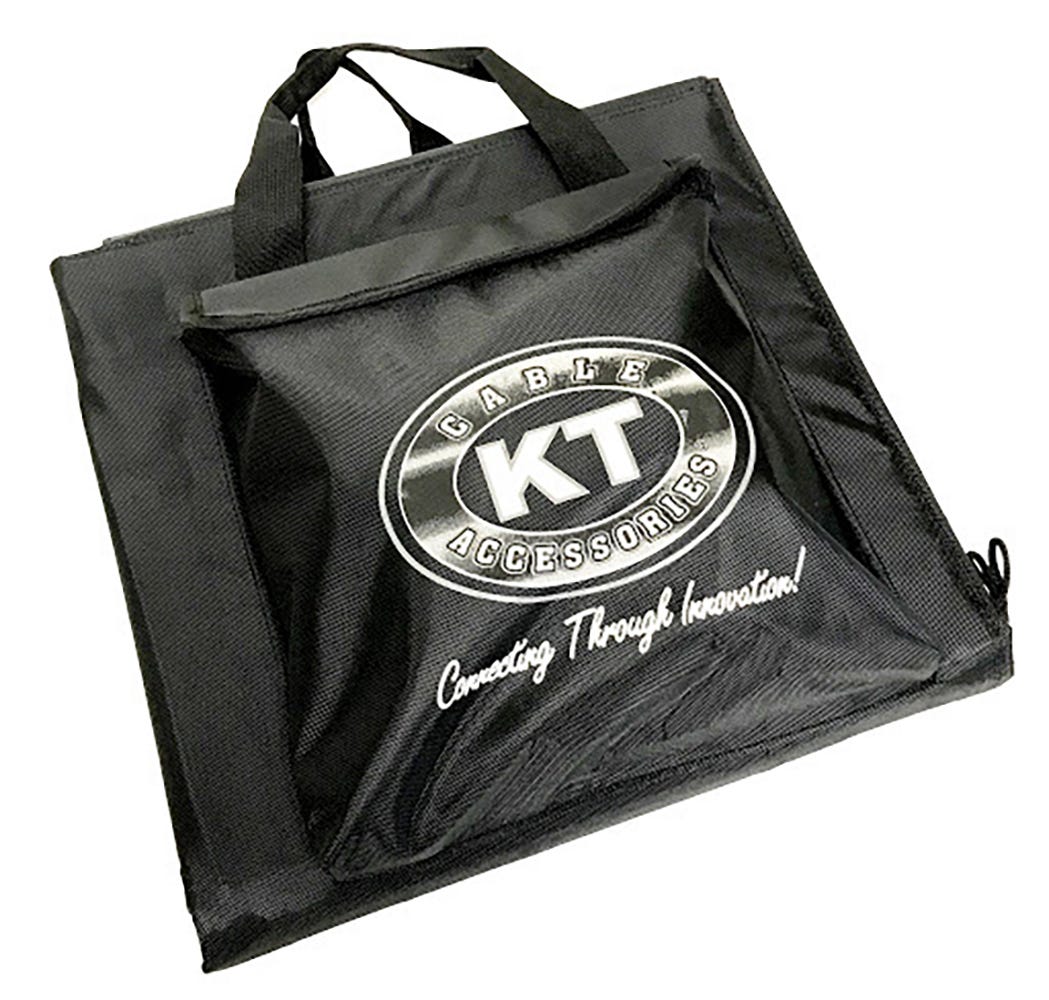

- Carry Bag Included
- 5 Charging Stages:
- Soft Charge: When batteries suffer an over-discharge, the controller will softly ramp the battery voltage up to 10V.
- Bulk Charge: Maximum current charging until batteries rise to Absorption level.
- Absorption Charge: Constant voltage charging and battery is over 85%.
- Equalization Charge: Only for WET battery or Calcium battery type, when the battery is deeply drained below 10V, it will automatically run this stage to bring the internal cells to an equal state and fully complement the loss of capacity. (LiFePO4, LTO, Gel and AGM battery do not run this charge).
- Float Charge: Battery is fully charged and maintained at a safe level. A fully charged Lead-Acid battery (Gel, AGM, WET battery) has a voltage of more than 13.6 Volts. A fully charged LiFePO4 or LTO battery has a voltage level of 13.4 Volts.
specifications
Dimensions (Unfolded): 197 x 114 x 0.5cm
Dimensions (Folded): 39 x 38 x 14cm
Panel Weight: 8.85kg
Packed Weight: 10.2kg
Maximum Power (Pmax): 300Wp
Maximum Power Voltage (Vmp): 18.8V
Maximum Power Current (Imp): 15.98A
Rated Voltage: 12V
Open Circuit Voltage (Voc): 22.15V
Short Circuit Current (Isc): 16.42A
Fuse: 20A

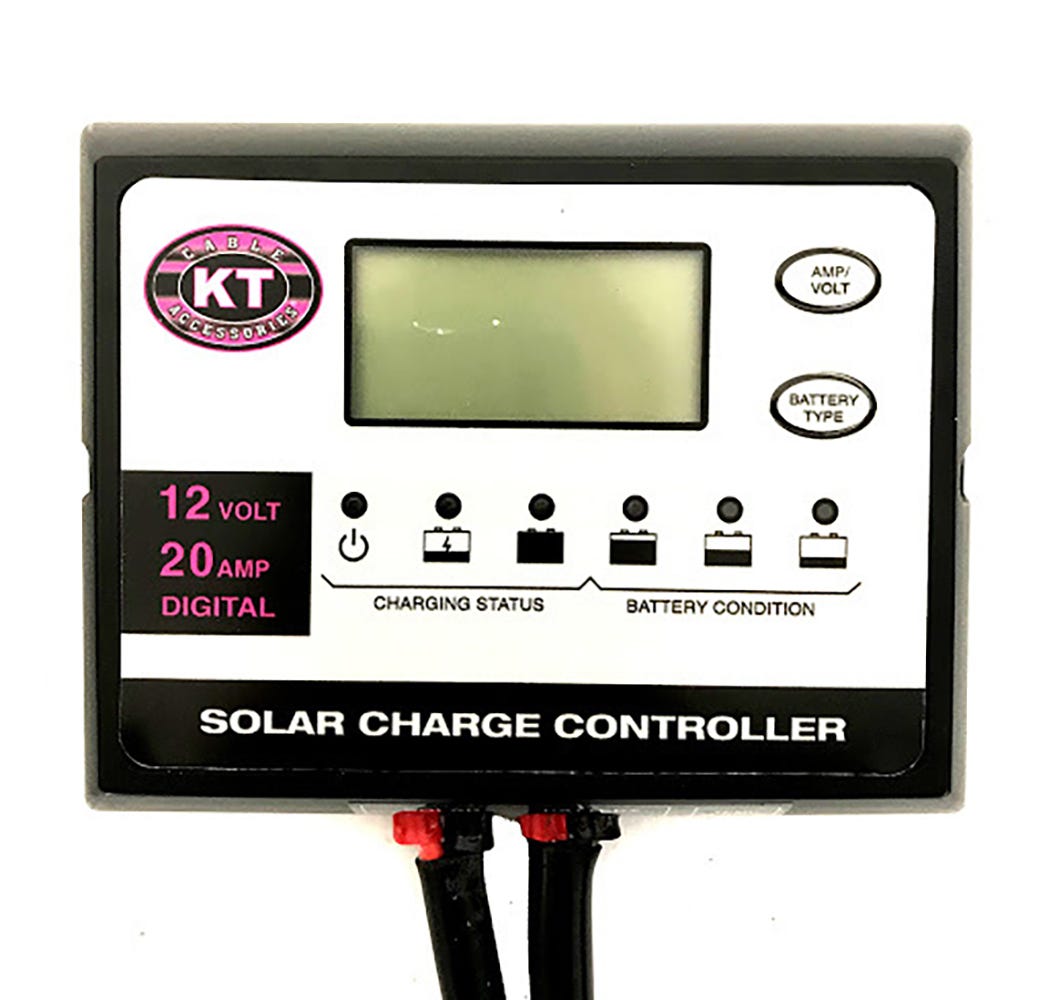

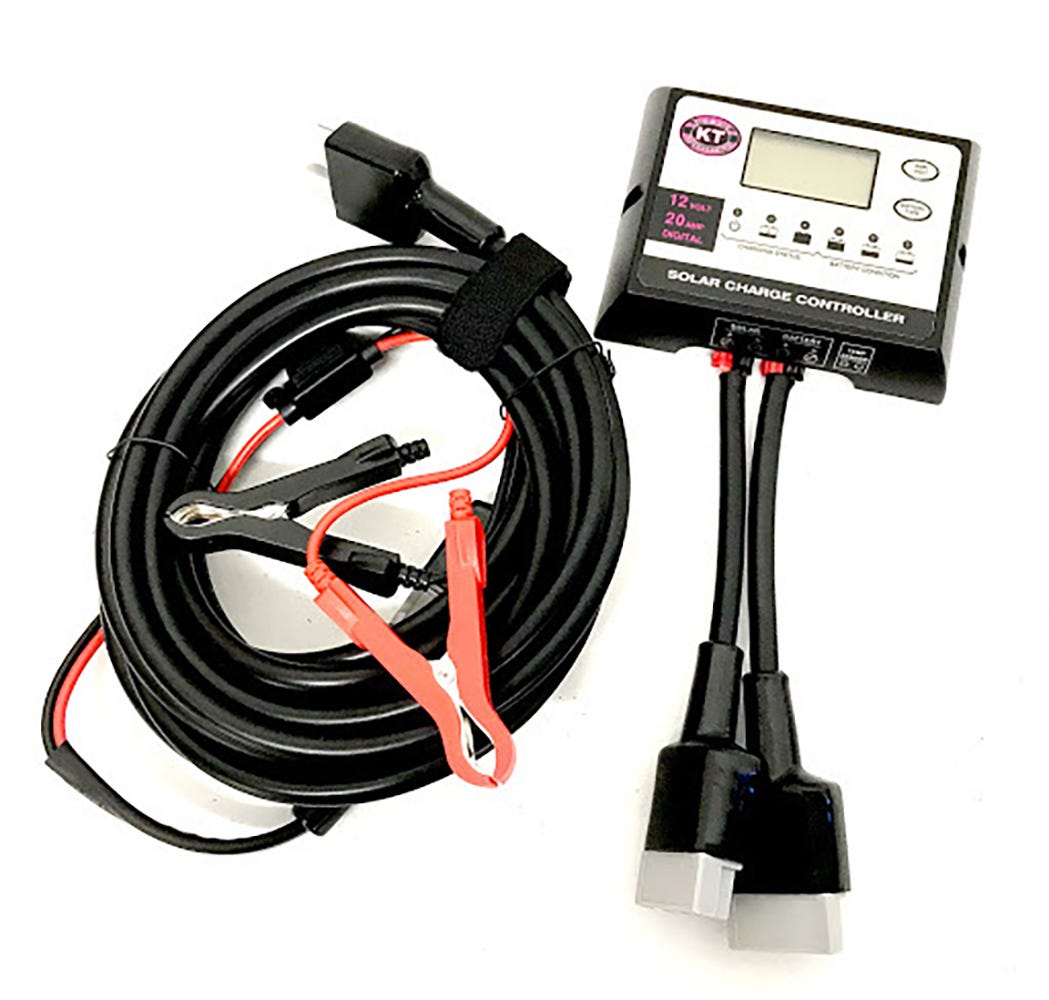

Solar Controller Type: PWM 20 Amp Solar Controller (IP67 Waterproof Rating)
Operating Temperature: -40°C to + 85°C
Battery Connections: Battery Clamps
Battery Compatibility: LiFePO4, LTO (Lithium Titanium Oxide), Gel, AGM, Conventional Lead-Acid (WET) and Calcium Batteries
warranty
The KT 300W Portable Folding Solar Blanket is covered by a 2-Year Warranty on Manufacture & Build, including a 25-Year Efficiency Guarantee.
