SKU: DTX4200XPKPLU: 151714UPC/EAN: 9338161006472
Oricom DTX4200X IP54 Dual Receive Ultimate 4×4 Touring Pack - ANU1100
or from $10/week with
- Delivery
- In-Store
- Click & Collect
- description. press to scroll to the description section.
- features. press to scroll to the features section.
- specifications. press to scroll to the specifications section.
- warranty. press to scroll to the warranty section.
- reviews. press to scroll to the reviews section.
description

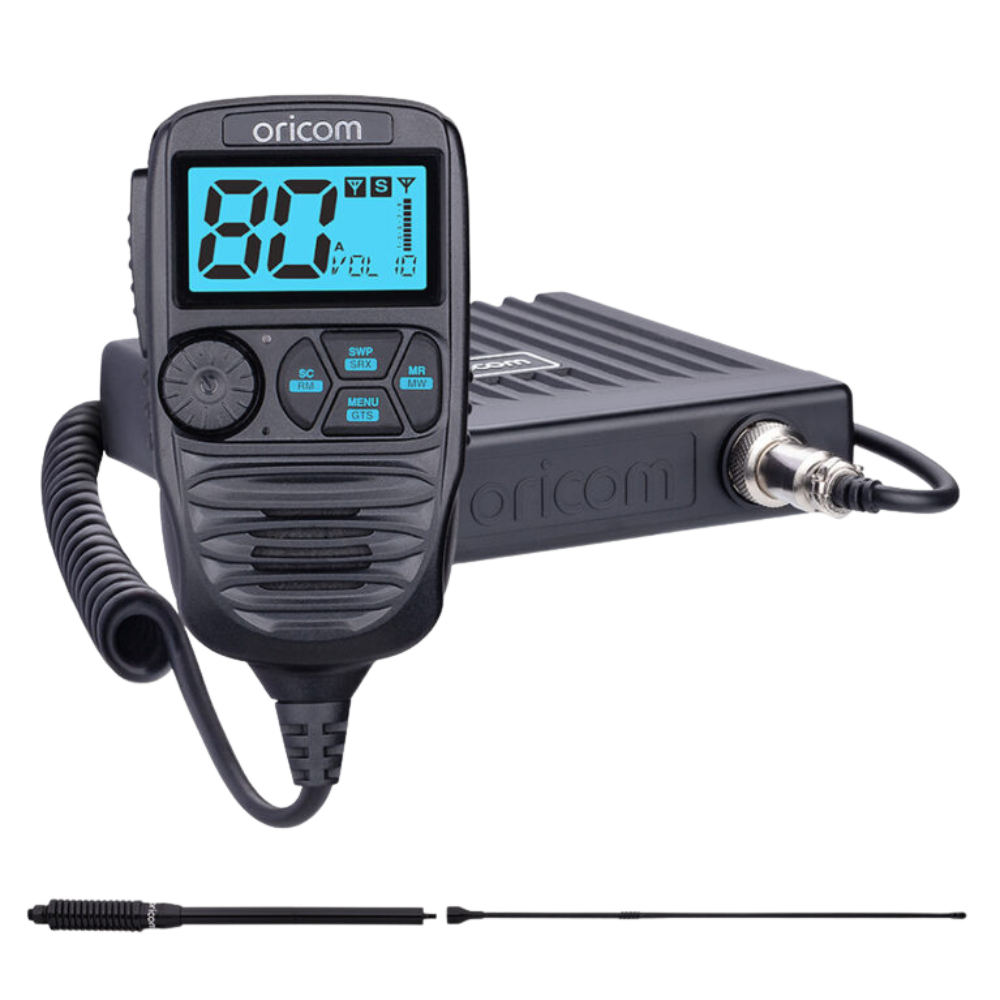

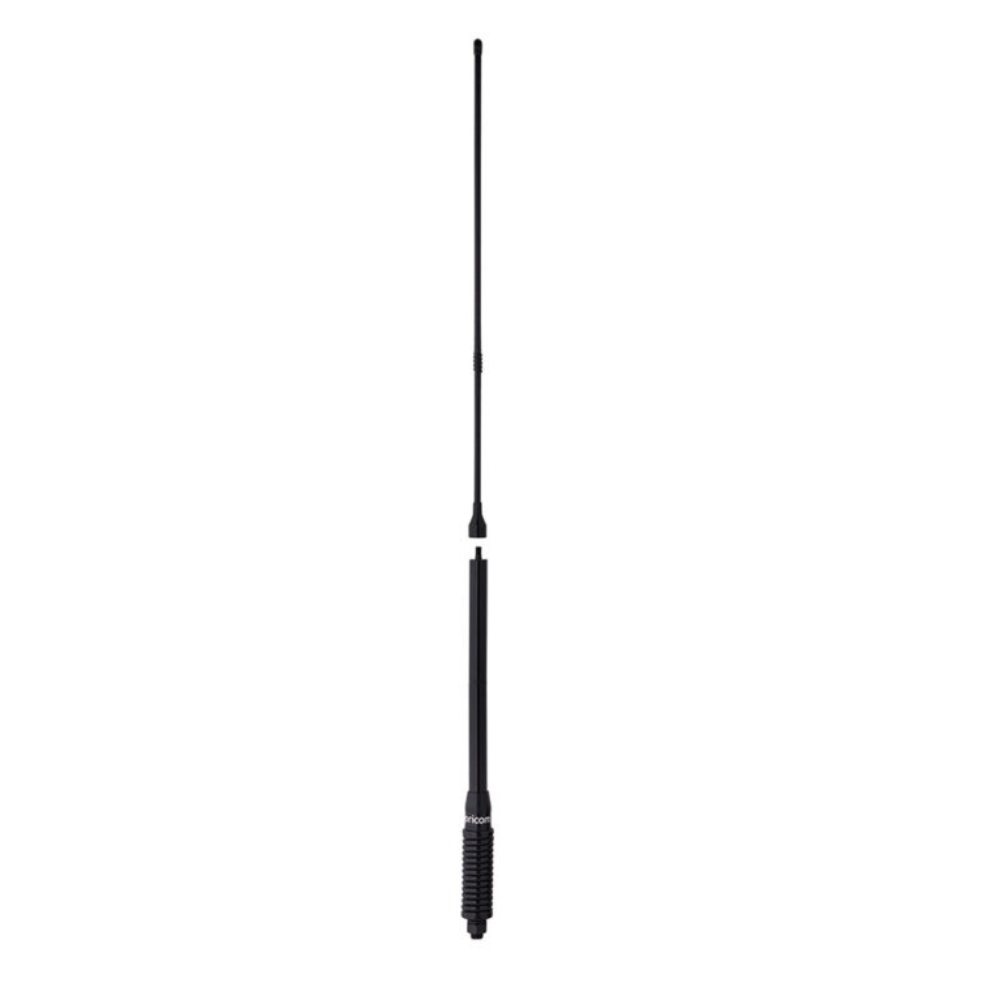

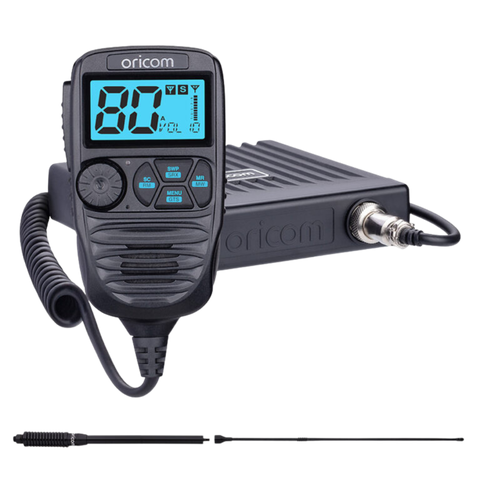

The Ultimate 4×4 Touring Pack pairs the new and improved DTX4200X Dual Receive UHF CB Radio with the popular ANU1100 Town & Country Antenna.
The dual receive function allows you to receive and listen to two different channels simultaneously without the need to have two UHF CB Radios installed.
BUILT LOUDER
The audio quality and volume have been significantly enhanced to provide Loud & Clear sound from the speakers in both the transceiver and microphone.
BUILT LARGER
Professional grade microphone has been redesigned to be heavier and larger in hand, with an extra-large easy-to-read LCD display.
BUILT TO LAST
Designed for Australian conditions and backed by our 5-year warranty.
features

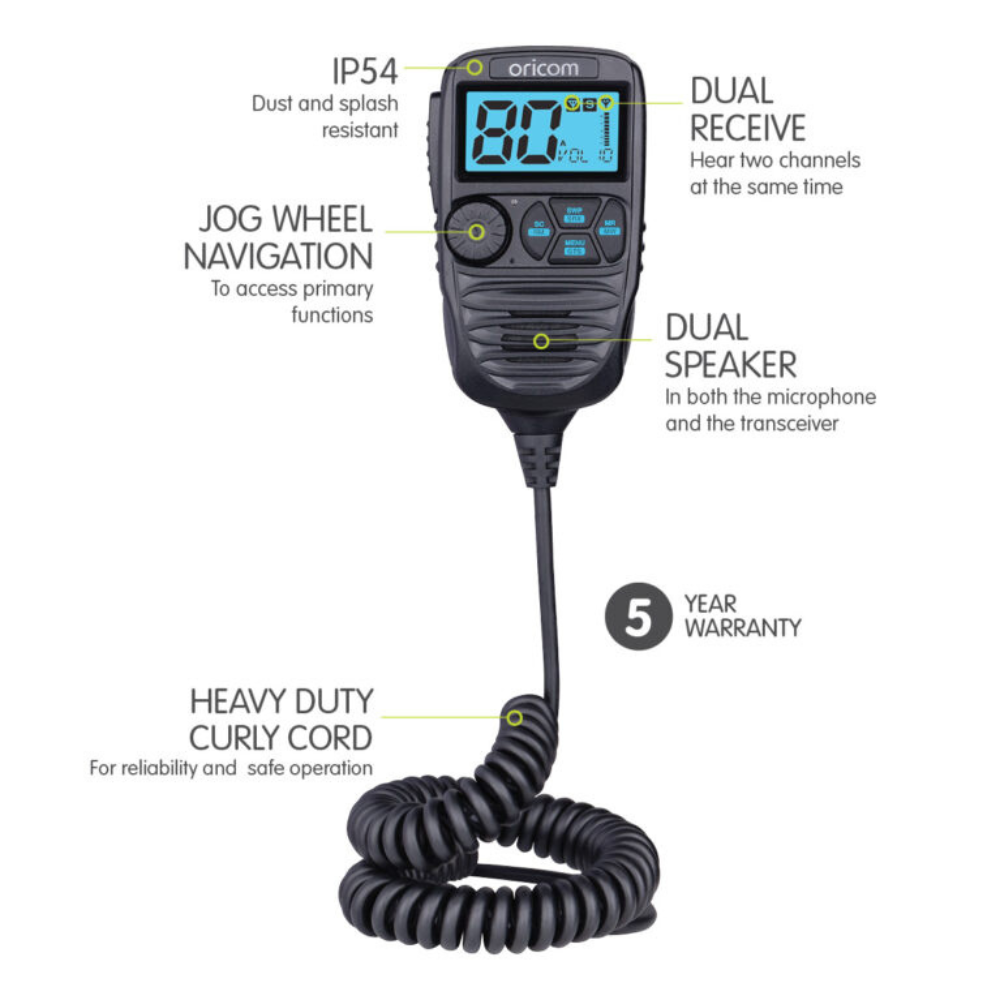

DTX4200X Key Features:
- Ergonomic, professional-grade controller speaker microphone
- IP54 Dust and splash resistant
- Loud and clear audio with a speaker in the microphone and the transceiver
- Easy to see the extra large backlit display
- Intuitive jog wheel to access primary functions
- Heavy-duty die-cast metal chassis
- 3 memory groups of 16 channels per group
- Large 96 multi-colour backlit display
- Backlight brightness (5 pre-set levels plus auto)
- Fast scanning 80 channels within 3 seconds
- Jog wheel volume/channel and squelch control
- Duplex
- 38 CTCSS & 104 DCS codes
- Transmit power indicator
- Slide-in mounting bracket
- Auto power off (off/1h/2h/4h)
- 3.5mm external jack (for optional external speaker)
- Included in the pack; a 2m microphone extension cable and mounting hardware
- Transceiver Dimensions (31mm x 128mm x 147mm)
specifications
| Transmitter RF Output Power | 5 Watts max |
| Compliance | AS/NZS 4365:2011 |
| Frequency Range TX/RX | 476.425 - 477.4125 MHz |
| Number of TX/RX Channels | 80 UHF CB Channels (75 voice) |
| Channel Spacing TX/RX | 12.5KHz |
| Operating Modes | Simplex, Repeater TX offset (+750KHz) |
| Scanning Speed | 50 msec per channel |
| Antenna Impedance | 50 Ohms |
| Operating Volts Nominal | 13.8VDC |
| Operating Volts Range | 10 to 15VDC |
| Over Voltage Protection | Diode and Voltage regulator system |
| Over Current Protection | 2 AMP fuse |
| Reverse Polarity Protection | Shunt diode |
| Frequency Stability | +/- 5 ppm |
warranty
Covered by a 5-Year Manufacturer's Warranty
