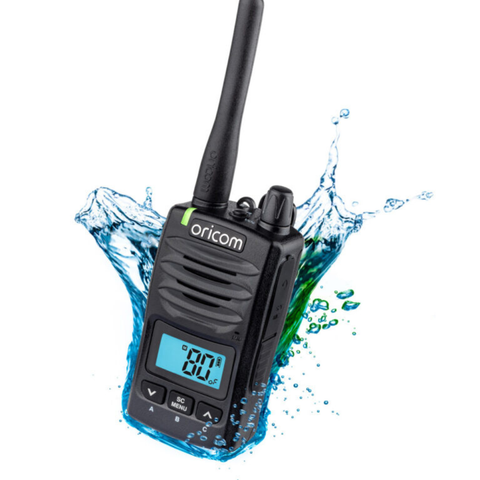

Oricom DTX600 Waterproof IP67 5 Watt Handheld UHF CB Radio

SKU:DTX600   PLU:151718
$220.00
RRP $249.00
SAVE $29.00 (12%)
In Stock
Check In Store for Local Pickup.


FREE Shipping for Orders over $69 for most Australians.
Banner - Catalogue Small PDP

Introducing the DTX600, the Ultimate in UHF CB Handheld Radios

Description

Introducing the DTX600, the Ultimate in UHF CB Handheld Radios. Featuring one of the largest backlit LCD displays in the Australian handheld radio market, the DTX600 is super compact and fits comfortably in the palm of your hand. Water and dustproof rated to IP67, this radio will go wherever you need it to, ensuring reliable communication no matter what the situation.


Features

  • Water and dust proof IP67 rating
  • Compact radio with large backlit LCD display
  • Switchable RF power (high: 5 watt, low: 1 watt)
  • 3 Programmable instant channel buttons
  • 80 channels
  • Fast charge technology supplied with 240v and 12v adaptors
  • Open/instant/priority scan
  • Die-cast metal chassis
  • Duplex (range extender)
  • Signal monitoring
  • Triple watch
  • Audio scrambler
  • 38 CTCSS and 104 DCS codes
  • High-capacity 2600mAh Lithium-ion battery pack (up to 30 hours operating time^)
  • 2.5mm jack socket with locking screw for optional accessories
  • Designed, engineered and produced in Korea

Specifications

Model: DTX600
UPC/ISBN: 9338161006687

Technical Specification

Compliance AS/NZS 4365:2011 and NZS2772.1
Frequency Range TX/RX 476.425 - 477.4125 MHz
Number of Channels 80 UHF CB (75 Usable)
Channel Spacing TX/RX 12.5KHz
Channel Spacing RX 12.5KHz
Operating modes Simplex, Duplex
Scanning Speed 150msec/per channel
Antenna Impedance 50 Ohm
Battery Capacity 7.4V,2600mAhLi-ionBattery. Operating time up to 20hrs on High TX power, 30hrs on Low TX power with an antenna.
Frequency Stability  +/- 2.5ppm

Transmitter

RF Output Power 5 Watts max.
Modulation FM
Maximum Deviation +/- 2.5KHz
Spurious Emissions Less than-30dBm
TX Frequency Response +1 to -3dB of 6dB/octave from 300Hz to 3000Hz
Audio Signal-to-Noise Ratio More than 35dB

Receiver

Circuit Type Direct conversion by Single DSP chip
Intermediate Frequencies IF = 137KHz
Sensitivity Less than -122dBm at 12dB SINAD
Selectivity More than 70dB
Intermodulation Immunity More than 70dB
Spurious Response Immunity More than 60dB
Audio Signal-to-Noise Ratio More than 50dB
Receive Frequency Response +1 to -3dB of 6dB/octave  from 300Hz to 3000Hz
Conducted Spurious Emissions Less than -57dBm at 9KHz




Warranty

3 year warranty
