SKU: TPMS10-6EPLU: 155773UPC/EAN: 9338161008483
Oricom Real Time Tyre Pressure Monitoring System Inc. 6 Sensors
or from $10/week with
- Delivery
- In-Store
- Click & Collect
- description. press to scroll to the description section.
- videos. press to scroll to the videos section.
- features. press to scroll to the features section.
- specifications. press to scroll to the specifications section.
- warranty. press to scroll to the warranty section.
- reviews. press to scroll to the reviews section.
description

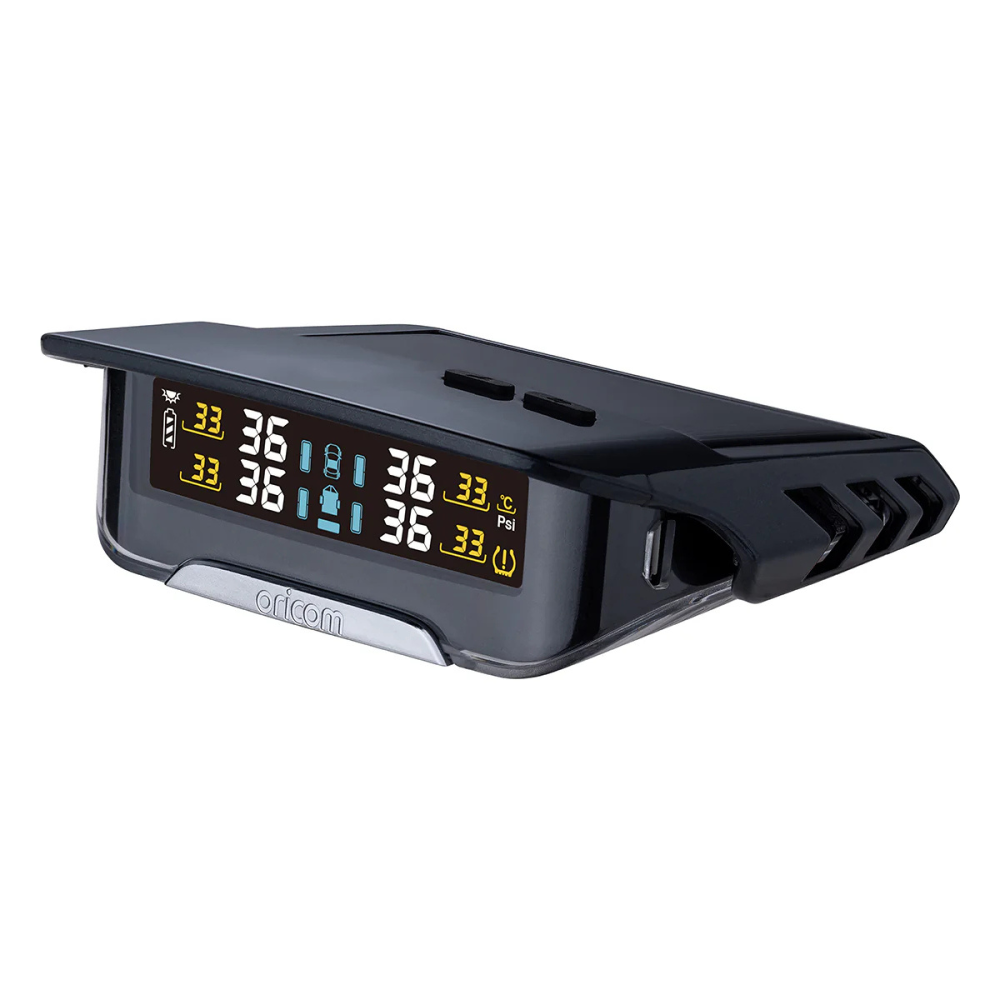

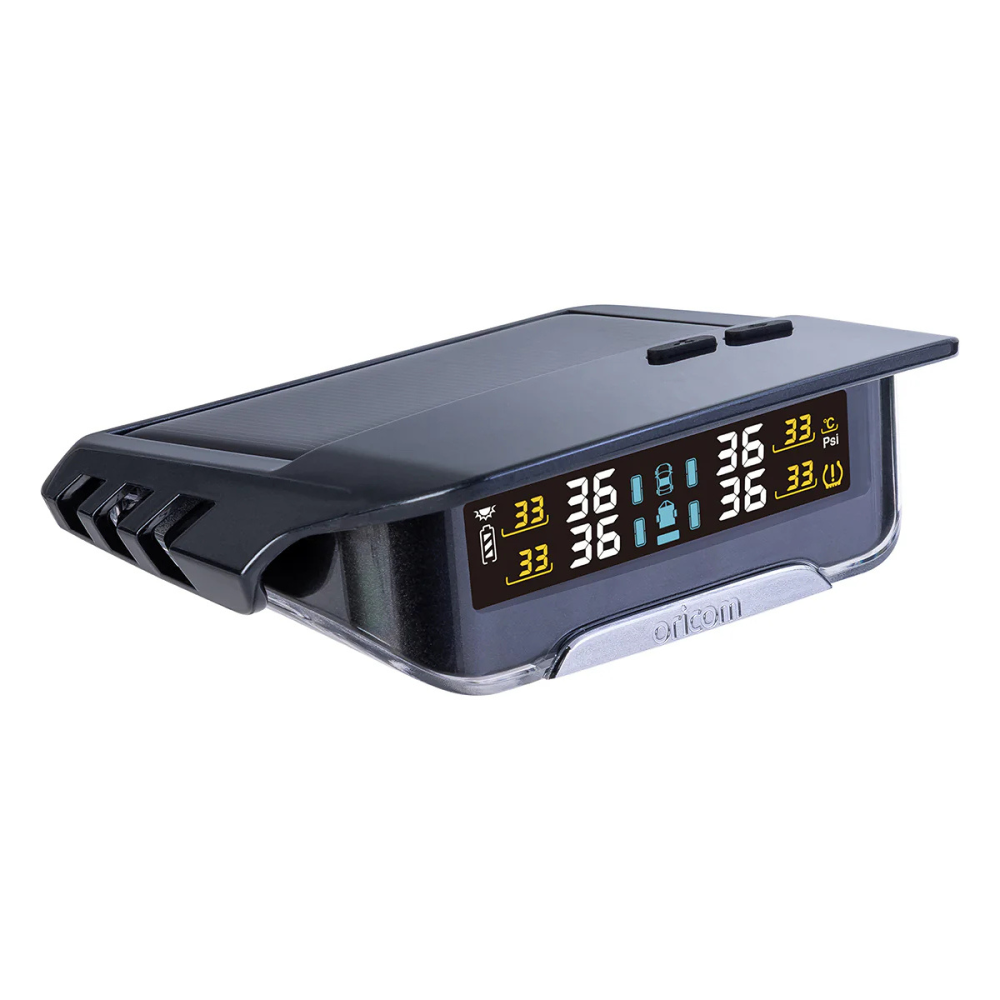

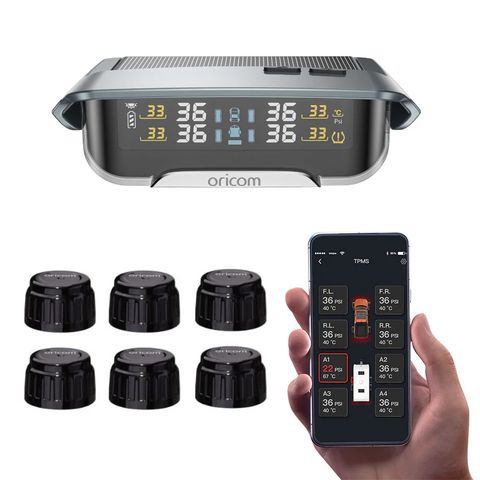

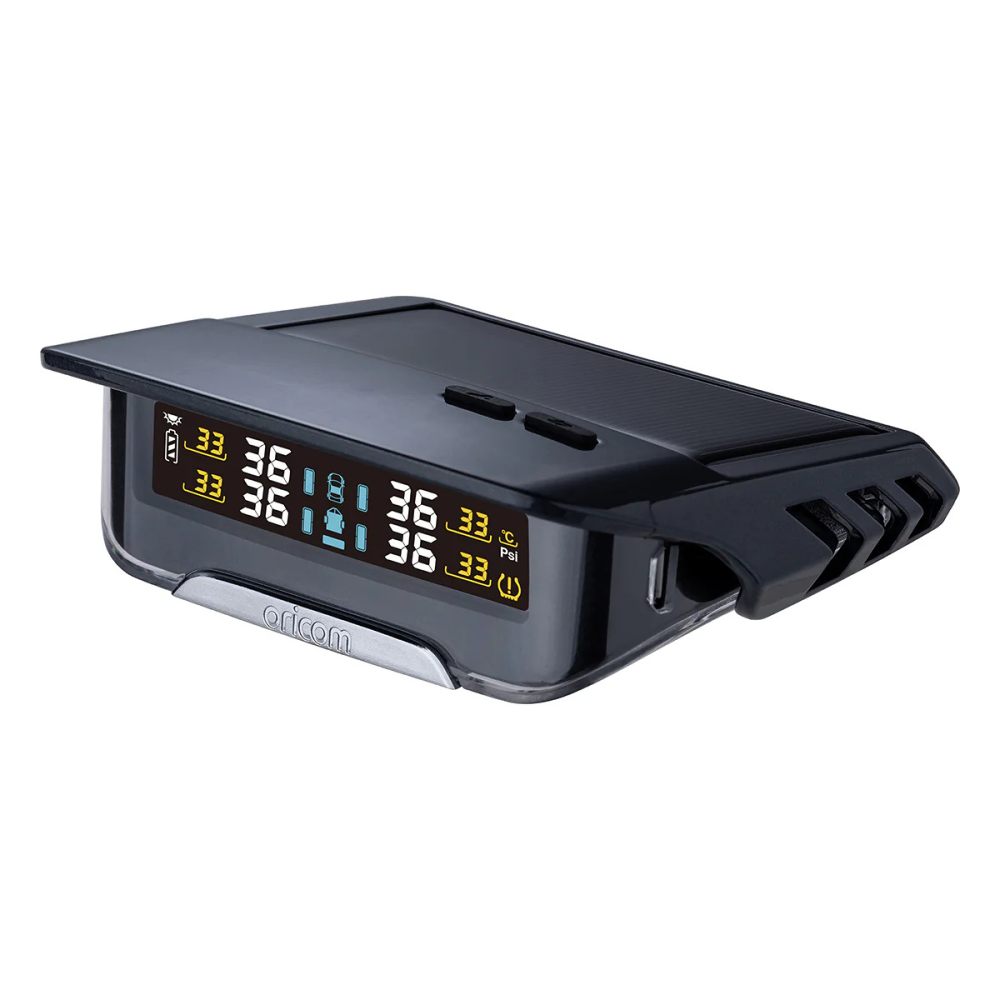

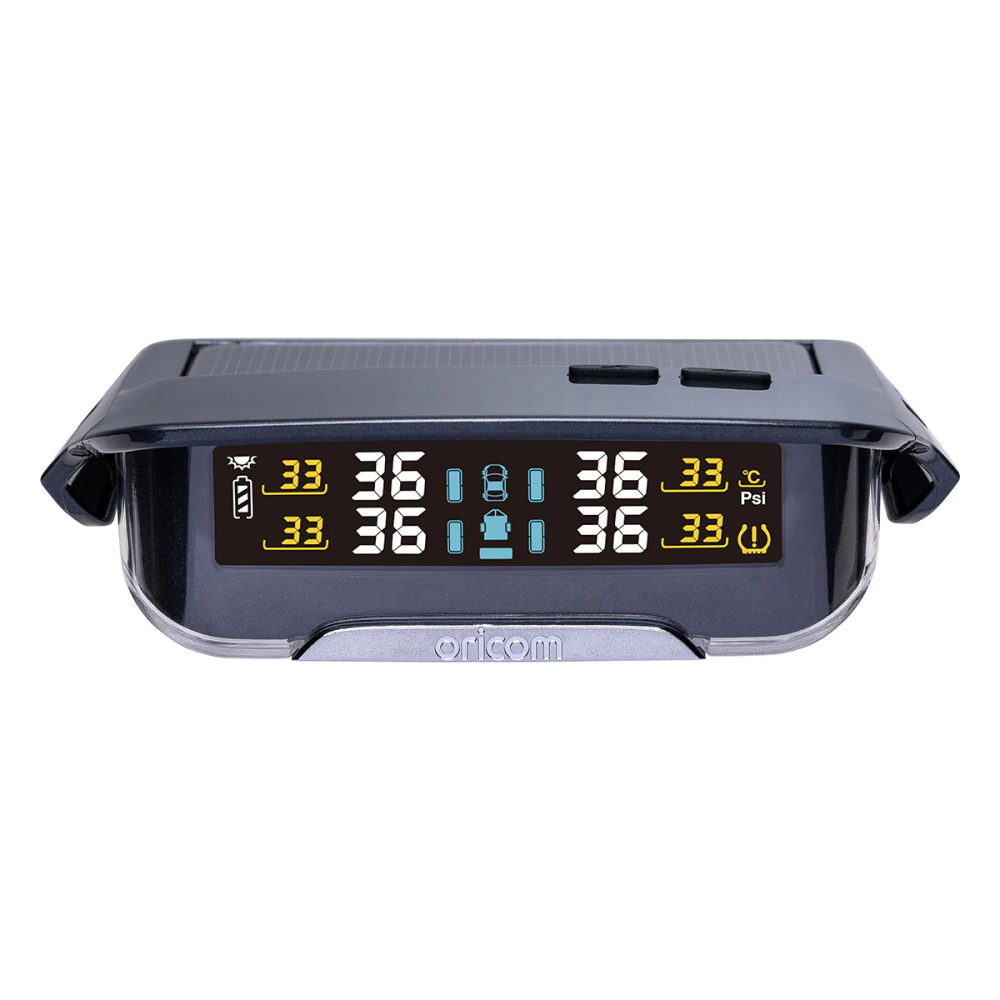

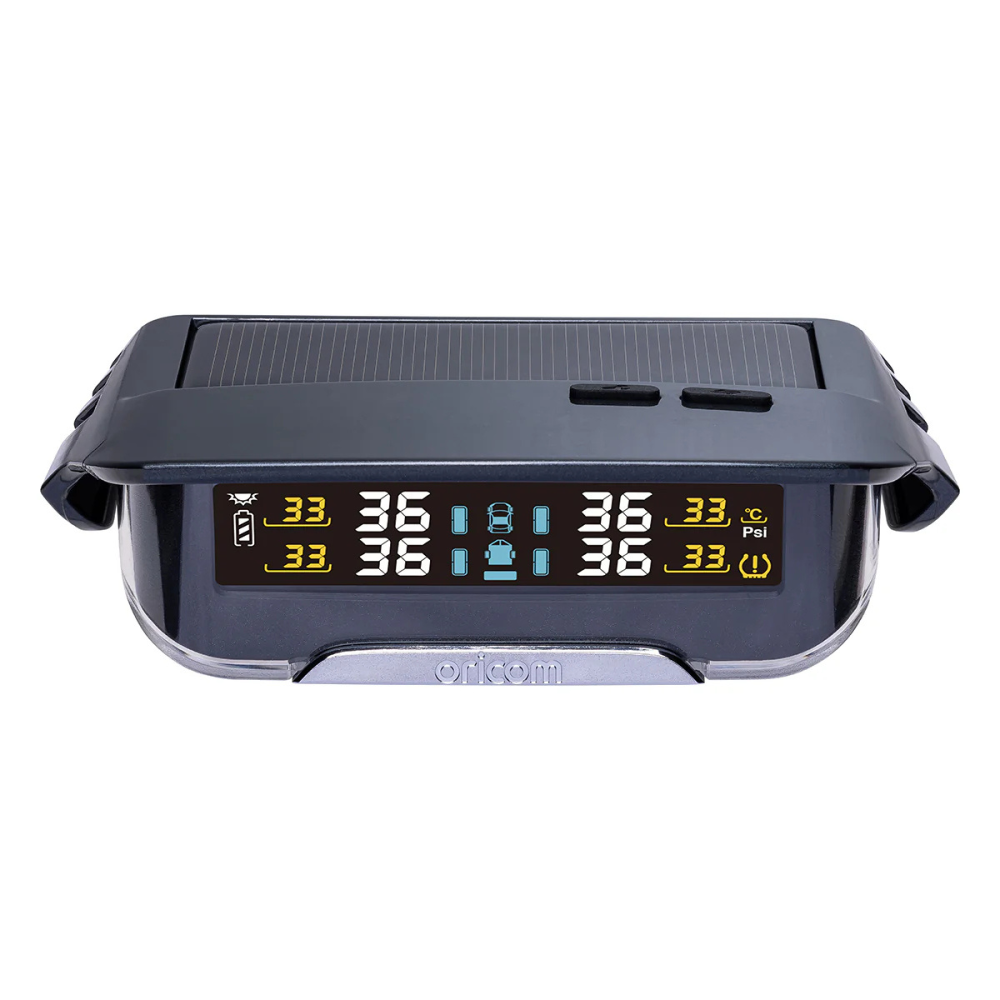

Keep your tyres performing at their peak and your journeys safer with the TPMS10-6E Tyre Pressure Monitoring System. Designed for effortless setup and maximum convenience, this system uses six external sensors to deliver real-time pressure and temperature readings straight to a solar-powered LCD display or the easy-to-use companion app. Whether you’re commuting through the city or heading off-road, you can quickly switch between Normal and Offroad modes to match your driving conditions. The system’s clear visual and audio alerts keep you informed of any issues such as high or low pressure, temperature fluctuations, or sensor failures, ensuring you can take action before problems arise.
Built for reliability and versatility, the TPMS10-6E features wireless transmission, auto-brightness adjustment, and an intelligent power-saving mode for long-lasting performance. It’s powered primarily by solar energy but can also be charged via micro USB when needed, giving you flexibility wherever you go. With compatibility for up to 10 sensors, robust operating temperature ranges, and a 12-month warranty, this system is the ultimate companion for anyone who values tyre safety, fuel efficiency, and peace of mind on every drive.
(Note: This unit is not compatible with Apple CarPlay or Android Auto.)
videos
features
- Compatible with up to 10 tyre sensors
- Easy setup with the free app
- Switch between Offroad and Normal modes to save tyre pressure settings
- Compact solar powered display unit
- Long lasting display unit battery life
- Wireless transmission between sensor and display unit
- Adjustable threshold value
- Auto brightness on display
- Monitors pressure and temperature
- Visual and audio alarm
- Optional micro USB input
- Intelligent sleeping mode for power saving
- High/ low pressure warning
- Sensor failure warning
specifications
| Pack Dimensions (L x W x H cm): | 23 x 6 x 18 cm |
| Pack Weight: | 500g |
| Sensor | |
| Operating frequency: | 433.92MHz ± 0.05MHz |
| Operating voltage: | 2.3 ~ 3.3V |
| Operating current: | ≤1 2mA |
| Static current: | ≤0.5uA |
| Operating temperature: | -20˚C ~ +80˚C |
| Storage temperature: | -40˚C ~ +80˚C |
| Battery model: | CR1632 |
| Display | |
| Operating frequency: | 433.92MHz ±0.05MHz, 2.4GHz BLE |
| Operating current: | ≤32mA |
| Static current: | ≤45μA |
| Operating voltage: | 2.6 ~ 3.6V |
| Operating temperature: | -20˚C ~ +70˚C |
| Storage temperature: | -40˚C ~ +95˚C |
| Built-in battery capacity: | 500mAh |
| Charging temperature: | -10˚C ~ 65˚C |
| Solar charging current: | ≥15mA (at 5500LX 25˚C) |
| USB Charging current: | ≤70mA |
warranty
12 month manufacturer's warranty
