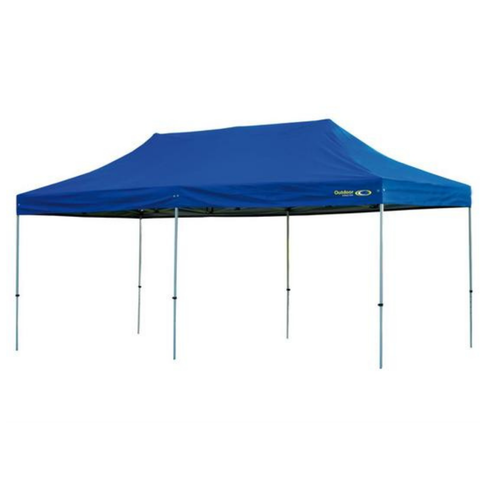

Outdoor Connection Breakaway 6mx3m Gazebo

SKU:BTG15   PLU:147872
In Stock
Check In Store for Local Pickup.

FREE Shipping for Orders over $69 for most Australians.
Banner - Catalogue Small PDP

This strong and sturdy 6 x 3m gazebo is perfect for camping, temporary shade in the back yard, picnics or a market stall.


The Outdoor Connection Breakaway 6 x3m Gazebo is strong and sturdy and the perfect solution for those hot days while you are out camping or even a temporary shade in the backyard, on picnics or at a market stall.

It comes with 4 height settings that only require a simple push button adjustment.

The Breakaway is quick and simple to erect and its high-quality canopy provides excellent shade and waterproofing. With a 5000mm+ Waterhead rating and heat-sealed taped seams you will keep nice and dry in unexpected wet weather.


  • Strong 420D, 280gsm canopy fabric with grey PVC coating on the underside – UPF 50+
  • Canopy Fabric is treated with Fire Retardant to USA CPI-84 standards
  • Waterproof canopy with a very high 5000mm+ waterhead and heat-sealed taped seams
  • Higher apex makes the gazebo cooler and aids in water run-off helping prevent pooling
  • Strong steel frame with Durable powder coated hammer-tone coating
  • 4 height settings with simple push button adjustment
  • Wheeled carry bag with heavy duty 800D fabric
  • Pegs and adjustable guy ropes supplied
  • 1 year warranty
  • 2 sizes 3m x 3m (measured at the canopy) and 6x 3m
  • Optional Solid and mesh walls available


Model: BTG15
UPC/ISBN: 9322302009330

Sizes (at top of Frame) 5970 x 3000mm
Legs 30mm x 30mm
Leg Wall Thickness 0.8mm
Struts Oval 13.5*23mm
Strut Wall Thickness 0.6mm
Frame weight 36 Kg
Apex height 320m   /  329cm   /   338cm    /  347cm
Leg heights - 4 heights (top of pole to foot) 219cm  /   228cm   /  237cm  /  246cm
Height to bottom edge of canopy 187cm   /   196cm  /   205cm   /   214cm
Bottom edge of canopy to apex 133cm
Foot Plate Steel 3mm thick with 2 X 10mm peg holes
Pole fittings

Top sliding bracket Push button

Leg height adjuster Push Button

Paint Finish Grey Hammer-tone
Fabric 420D polyester    with USA CPI-84 Fire Retardant
Colour Blue
Coating on underside Grey PVC
Fabric weight 280gsm
Canopy weight 7.5 Kg
Seal sealing Heat-sealed tape over canopy seams
Guy Rope attachment D ring and webbing sewn onto corner
Velcro Velcro sewn continuous around bottom edge of valance for walls
Valance height 32cm
Carry Bag
Fabric 800D Polyester
Fabric Weight 380gsm
Wheels Wheeled Carry Bag
Instructions Sewn into Carry Bag
Included Accessories
Pegs 12 pegs 23cm x 6mm
Guy Ropes 6 guy ropes with rope runners x 3m



1 Year Warranty
