SKU: IDC25PLU: 136276UPC/EAN: 9315219252517
Projecta DC/Solar 3 Stage Battery Charger 9-32V - 25A
or pay nothing today with
- Delivery
- In-Store
- Click & Collect
- description. press to scroll to the description section.
- features. press to scroll to the features section.
- specifications. press to scroll to the specifications section.
- downloads. press to scroll to the downloads section.
- warranty. press to scroll to the warranty section.
- reviews. press to scroll to the reviews section.
description
A truly sophisticated dual battery management system ideal for 4WD and camper trailer applications. Provides an advanced 3 stage charge simultaneously from both solar and alternator inputs.
Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. IDC25 is shock, vibration and dust proof.
features
Engine bay installation
Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
Dual charging modes
Engineered to work with both smart and conventional alternators
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel
Dual input operation

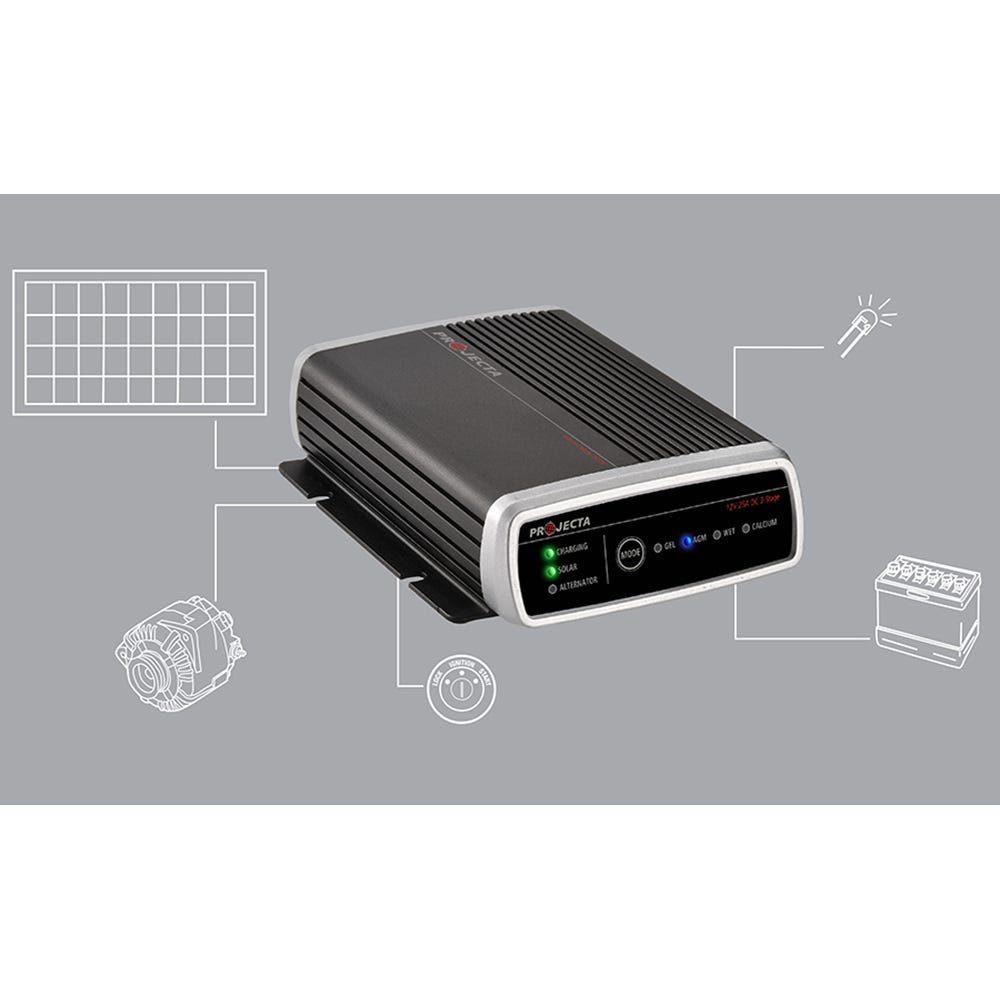

Simultaneous dual battery charging from both solar and alternator inputs
Total safeguard protection
Over temperature, reverse connection, over/under and spark free protection
specifications

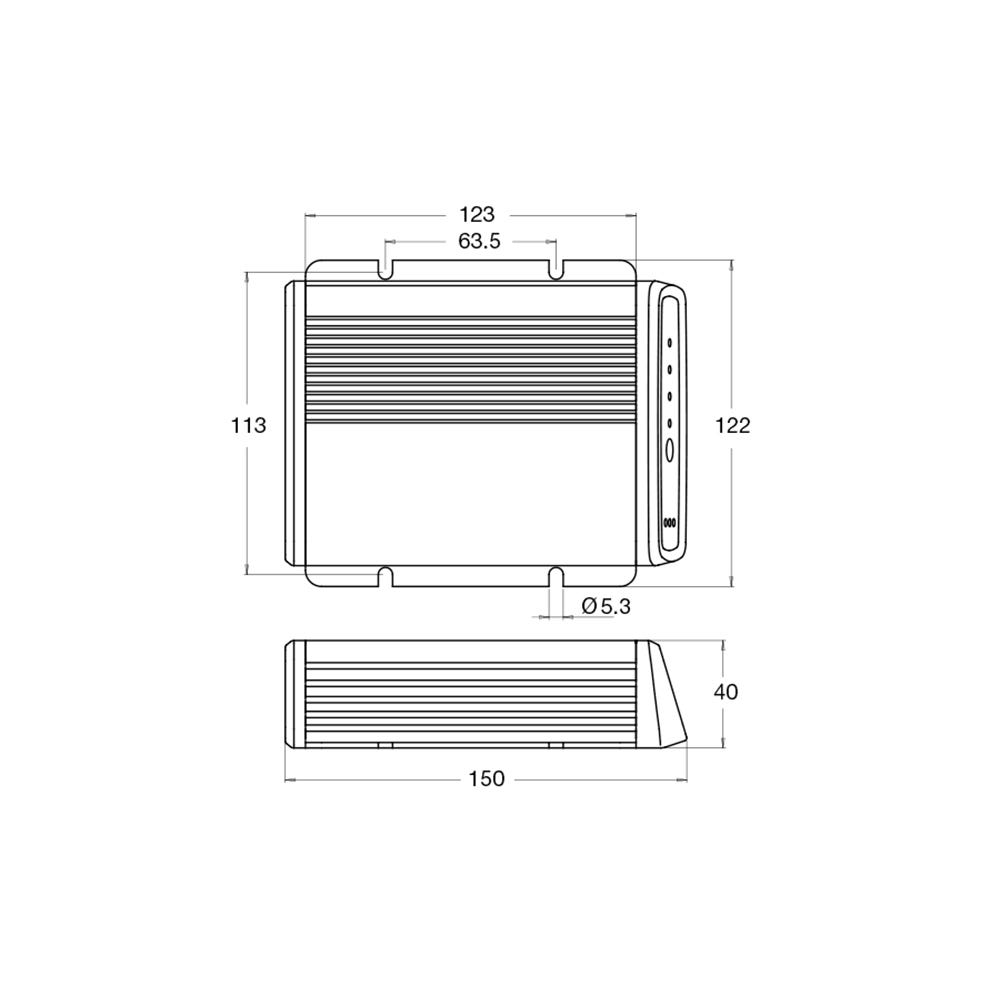

| Size | 149 X 122 X 42mm |
| Operating Temperature | -10°C to +80°C |
| Battery Capacity | 75–300Ah |
| Alternator Input Volatge | 9–32Vdc |
| Solar Input | 23Vdc, 385W |
| Output Current |
Input 9–11Vdc 20A Input 11V–32dc 25A |
| Charge Control |
Gel: 14.1V AGM: 14.4V WET: 14.7V Calcium: 15.4V |
| Smart Alternator |
12V Vehicle: Turn On: 12.2–20V Turn Off: <11.9V 24V Vehicle: Turn On: ≥24.4–32V Turn Off: <24V |
| VSR Alternator |
12V Vehicle: Turn On: ≥13.4–20V Turn Off: <12.8V 24V Vehicle: Turn On: ≥26.8–32V Turn Off: <25.6V |
downloads
warranty
This product has a 2 year manufacturer's warranty covering manufacturing faults
