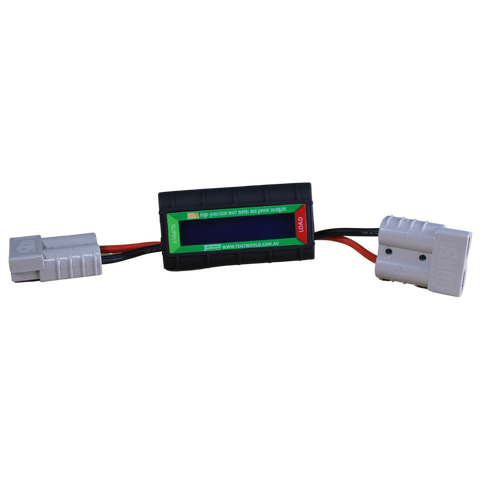

Tentworld Wattmeter 150A with Anderson Plugs DC 12V
or from $10/week with
- Delivery
- In-Store
- Click & Collect
- description. press to scroll to the description section.
- videos. press to scroll to the videos section.
- features. press to scroll to the features section.
- specifications. press to scroll to the specifications section.
- downloads. press to scroll to the downloads section.
- warranty. press to scroll to the warranty section.
- reviews. press to scroll to the reviews section.
description
The high precision Wattmeter and Power Analyzer, is a simple device that is easily installed and provides you with all the key ratings of your 12V DC solar panels, and all other DC appliances in real real time
Installation is easy - the wattmeter has two 50Amp Anderson plugs to allow you to quickly insert the wattmeter inline between your source and batteries/load. Simply connect your source to the "source" side of the watt meter, and connect the battery/load cabling to the "load" side. Once there is power flowing through, the device will initialise and show you a full range of ratings.
videos
features
• Measures energy in (AH) Amp Hour, (W) Watts, (A) Amps & (V) Voltage.
• Reads voltage levels from 0 Volts.
• Accurate & Precise 0.01A and 0.01 Variance.
• Measures Peak Amps & Peak Watts
• Small & Light Form Factor makes it easy & convenient to install.
specifications
| Operate | 6V - 60V |
| Dimensions | 85x42x25mm |
| Weight Approx | 82g |
| Display Screen | 16x2, black-lit LCD display |
| Watt Meter Measurement Parameters | |
| Voltage | 0 - 60V, 0.01V Resolution |
| Current | 0/130A/150A, 0.01A Resolution |
| Power | 0 - 6554W, 0.1W Resolution |
| Charge | 0 - 65AH, 0.001Ah |
| Energy | 0 - 6554Wh, 0.1Wh Resolution |
downloads
warranty
One year
