SKU: 10048674PLU: 156408UPC/EAN: 9320531109463

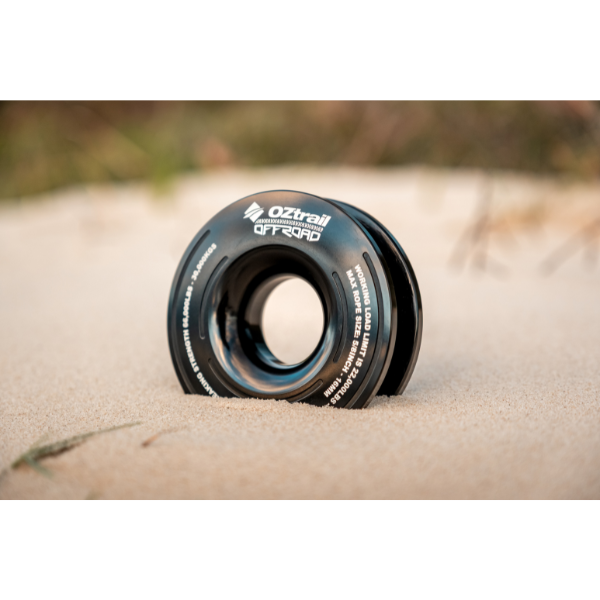

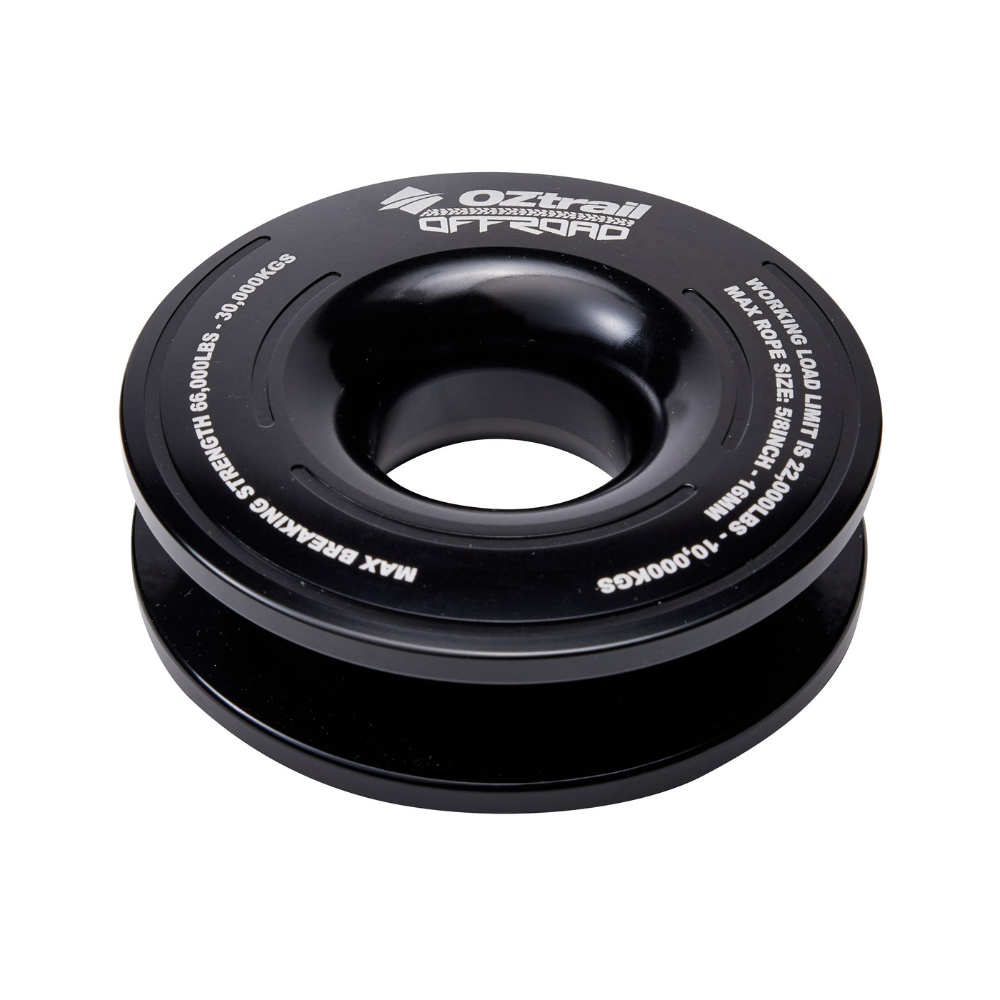

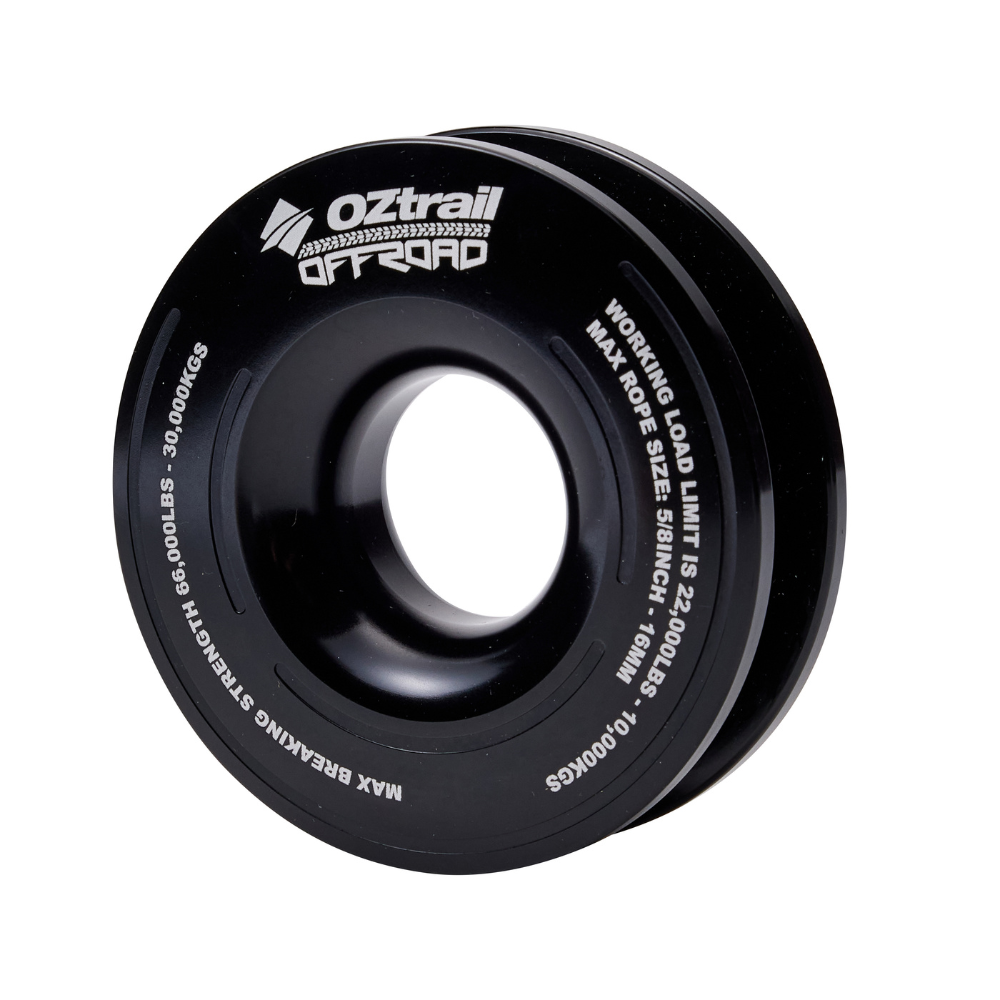

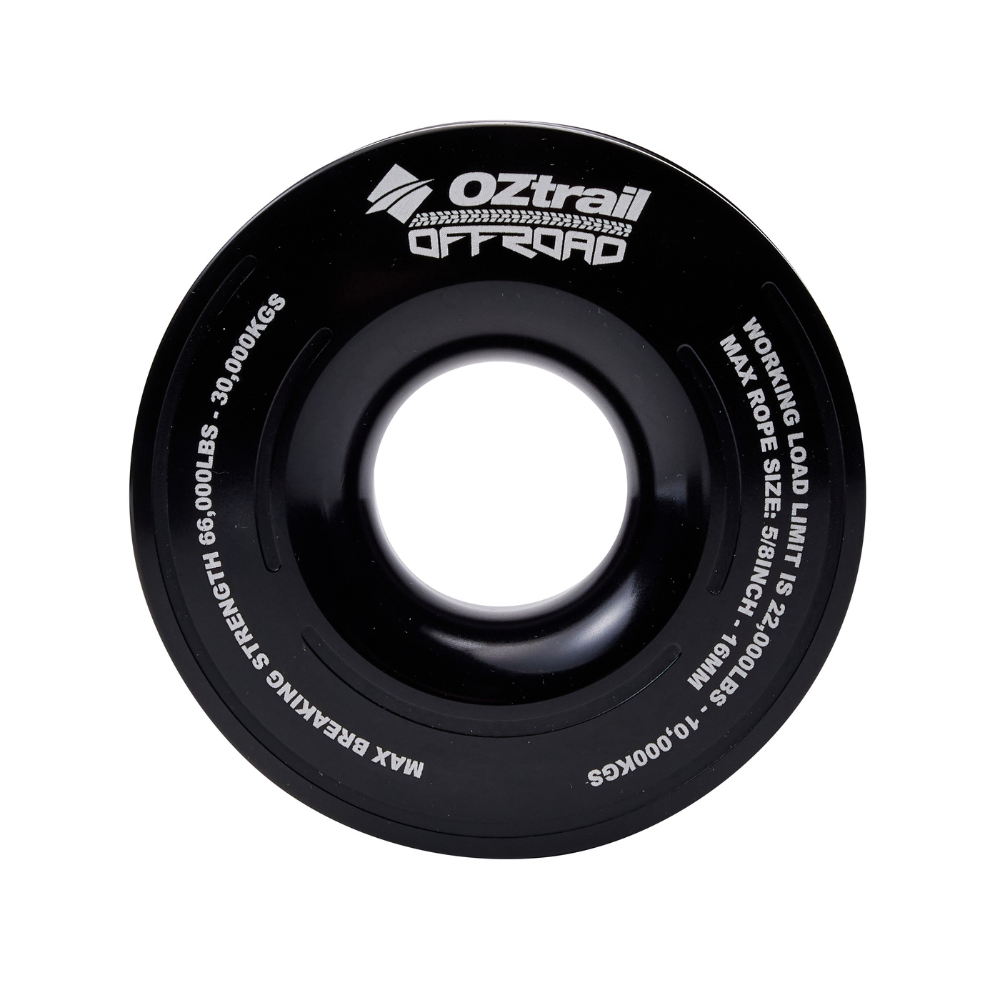

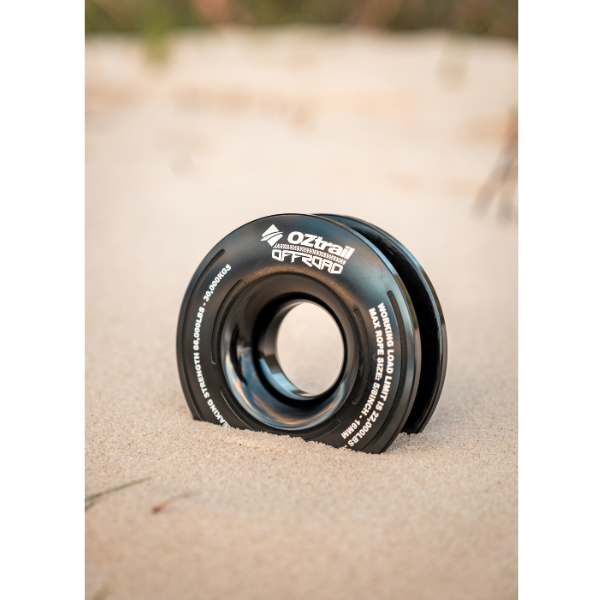

OZtrail 10T Recovery Winch Ring
or pay nothing today with
- Delivery
- In-Store
- Click & Collect
- description. press to scroll to the description section.
- videos. press to scroll to the videos section.
- features. press to scroll to the features section.
- specifications. press to scroll to the specifications section.
- warranty. press to scroll to the warranty section.
- reviews. press to scroll to the reviews section.
description
The OZtrail 10T Recovery Winch Ring is a smart addition to any winch recovery kit, helping improve efficiency and reduce strain during recoveries. Designed for use with soft shackles and synthetic winch ropes, it provides a simple and effective solution for tackling challenging off-road conditions.
Rated to a 10 tonne working load limit (WLL) with a 30 tonne minimum breaking strength (MBS), the winch ring enables double line pulls to increase pulling power while reducing load on the winch motor. This helps minimise stress on recovery equipment and improves overall control during recoveries. As a lightweight alternative to traditional snatch blocks, it delivers reliable performance with less bulk.
Precision CNC machined from 6061 aluminium and weighing just 0.5kg, the ring is easy to handle, carry and store. Its corrosion-resistant anodised finish and smooth, low-friction surface help reduce heat build-up and wear on synthetic winch ropes. Compatible with synthetic ropes up to 15mm in diameter, it's a compact and durable recovery tool built for demanding off-road use.
- Do not use with steel winch rope
- Do not exceed the working load limit (WLL) or minimum breaking strength (MBS) when the product is in use. Failure to do this may result in property damage, injury or death.
- This product is not certified for lifting
videos
features
- 10 tonne working load limit for controlled winch recovery operations
- 30 tonne minimum breaking strength for high strength performance under load
- Enables double-line pulls to reduce winch load and improve efficiency
- Allows line redirection for more versatile recovery setups
- Designed for use with synthetic winch rope up to 15mm diameter
- Reduces strain on winch motor, rope and recovery components
- CNC-machined 6061 aluminium construction for lightweight strength and durability
- Anodised finish improves corrosion resistance in harsh conditions
- Compact and lightweight design for easy storage and handling
- Lightweight alternative to traditional pulley blocks
specifications
| Dimensions: L x W x H | 14 x 13 x 5cm |
| Weight: | 500g |
| Working Load Limit (WLL): | 10T (10,000kg) |
| Minimum Breaking Strength (MBS): | 30T (30,000kg) |
warranty
12 month warranty against materials and manufacturing defects
